CARMEC Brake Disc and Brake Drum Lathe for HEavy Vehicles

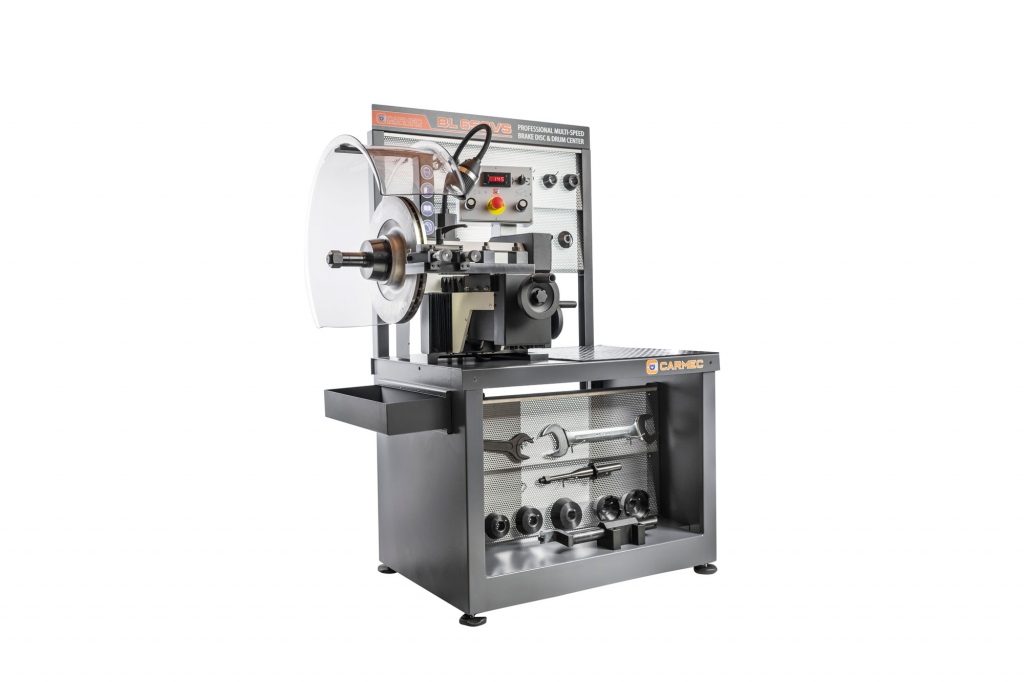

The BL 650VS Brake Lathe is designed to recondition all brake discs and drums of cars, light trucks and SUV and is the result of development process with input from around the globe.
A 180 kg rigid cast iron body and a solid Heavy-Duty Work Bench eliminates transient vibrations ensuring the best surface finish. The BL 650VS uses independent precision electric DC gear-motors to control the cross-feed and spindle speed drives.
Adjustable spindle speed allow for fast turning of small pieces and high-quality turning of larger pieces - no belt changes. The cross slide feed with variable speed always assures the best surface finishing. Now you have complete control over the entire process and can make adjustments.
Key Features:
-
Separate DC gear-motors on the drum and disc feed for best surface results
-

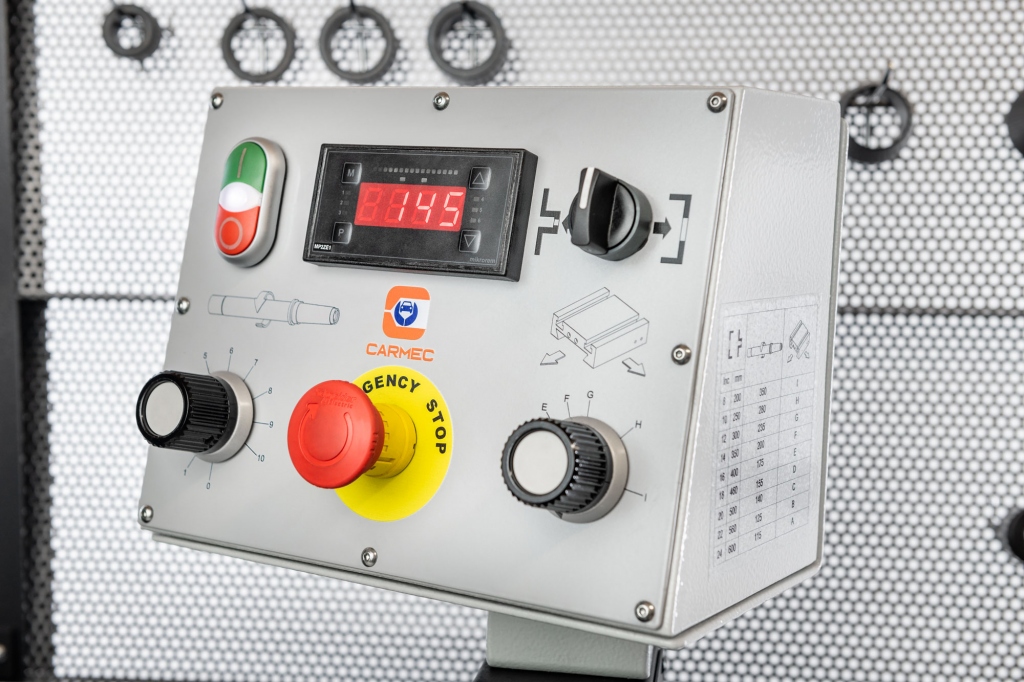

Electronically controlled variable spindle speed and cross feed speed provide a perfect finish
-
Mounted tool board for convenient access to adapters and tools
-
Quick changeover from disc to drum
-
Automatic shut-off
-

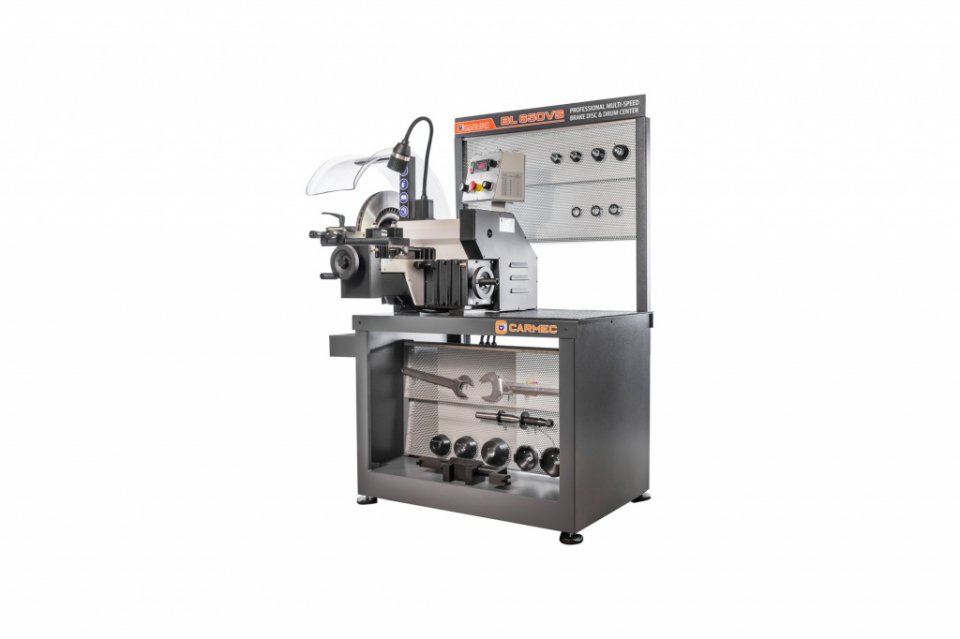

Heavy Duty Work Bench with Tool Board & Chip Tray
-
Table Handwheel with Limit Switch

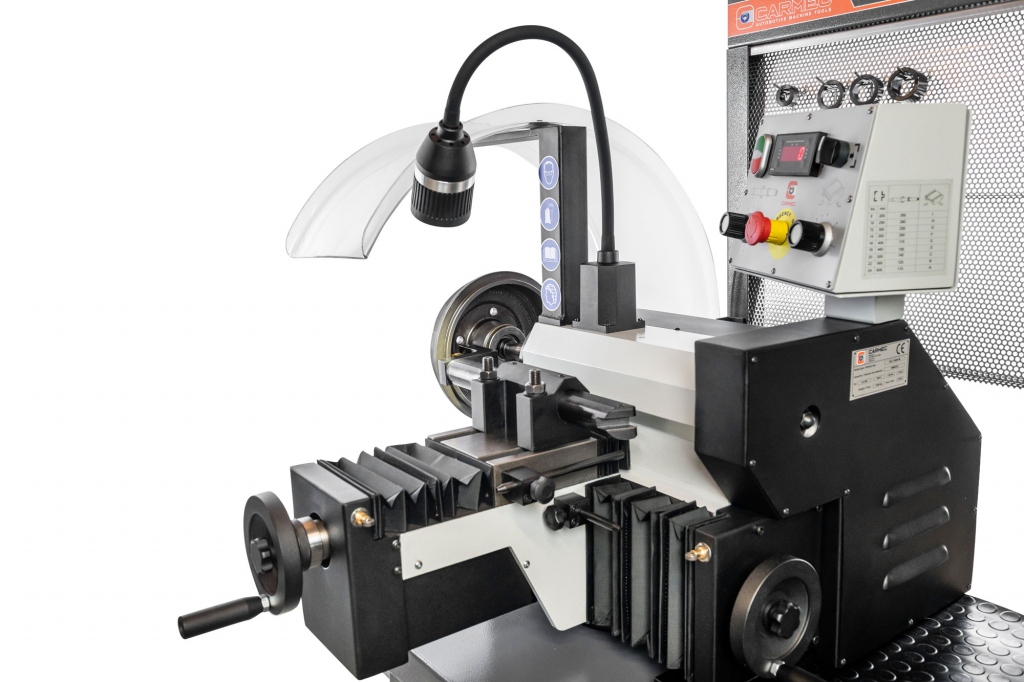

This complete lathe package includes the lathe with Twin Cutter Head, Standard accessories which cover most applications and rugged work bench with large storage boards for tools and accessories.
Technical Specifications
| Min - Max Disc Diameter | 102 - 635 mm (4" - 25") |
|---|---|
| Max Disc Thickness | 100 mm (4") |
| Min - Max Drum Diameter | 150 - 650 mm (6" - 26") |
| Max Drum Depth | 200 mm (8") |
| Infinitely Variable Spindle Speed | 0 ÷ 350 RPM |
| Infinitely Variable Disc/Drum Feed | 0 ÷ 72 mm/min (0 ÷ 2.85"/min) |
| Spindle Motor Power | 1.5 kW - 2 HP |
| Drum Feed DC Motor | 185 W |
| Disc Feed DC Motor | 185 W |
| Voltage | 215/240 V ±15% |
| Phases | 1 Ph |
| Frequency | 50/60 Hz |
| Net Weight | 250 kg (550 Lbs.) |
| Machine Dimensions (LxWxH) | 1250x1100x1650 mm (49" x 43" x 65") |
| Shipping Dimensions (LxWxH) | 1150x1050x1750 mm (45" x 41" x 67") |
| Shipping Weight | 350 kg (770 Lbs.) |
| Key Features | Separate DC gear-motors on drum and disc feed, electronically controlled variable spindle speed and cross feed speed, mounted tool board, quick changeover from disc to drum, automatic shut-off |

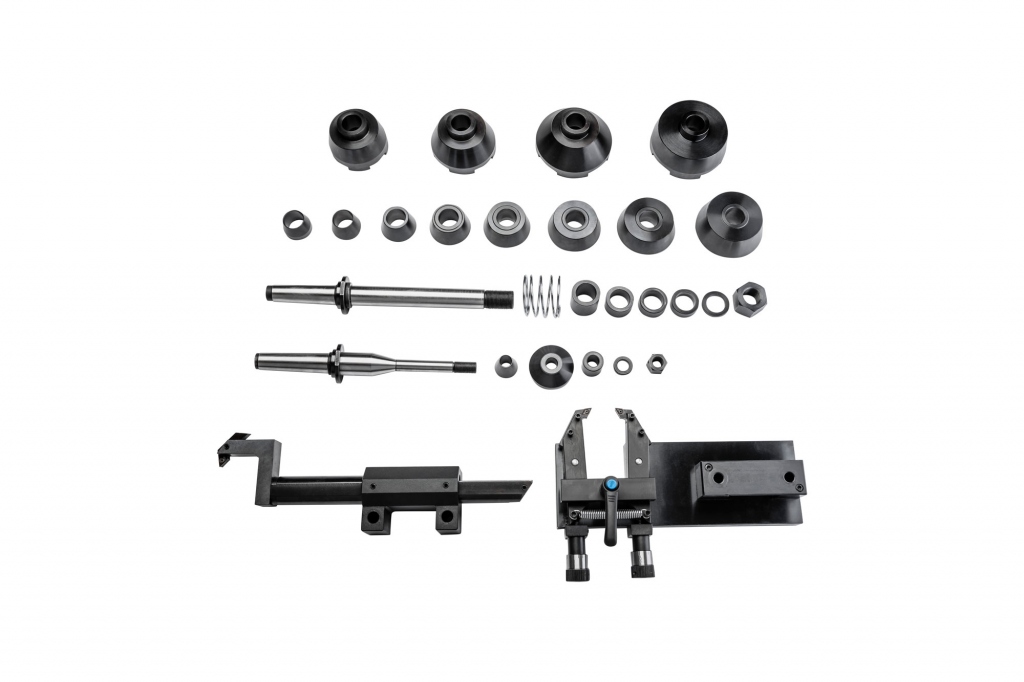

| Standard Equipment | Low voltage electric controls (24V), heavy duty work bench, removable chip tray, tool storage boards, safety plexiglass guard, LED work light, adjustable twin cutter head for discs, drum boring bar, arbor sets, silencers |
| Construction | 180 kg rigid cast iron body, heavy-duty work bench eliminates vibrations |
